Product Features:

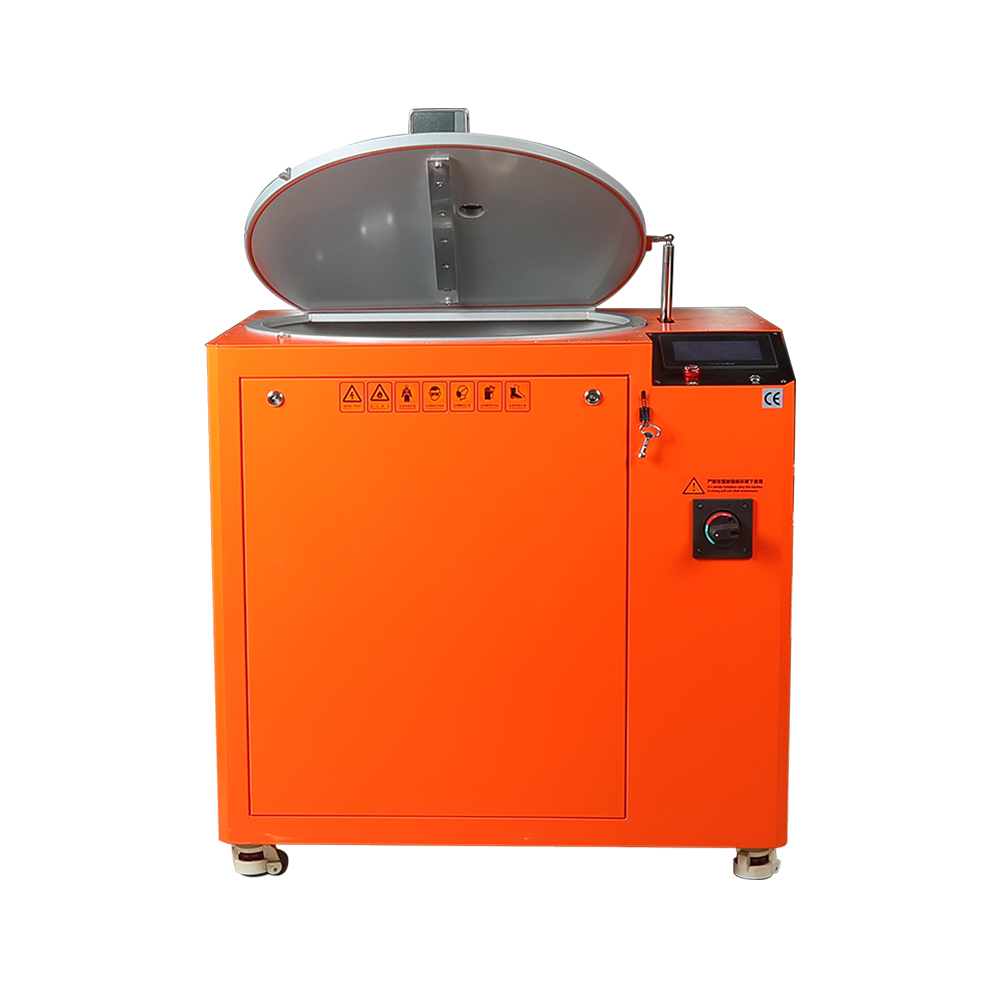

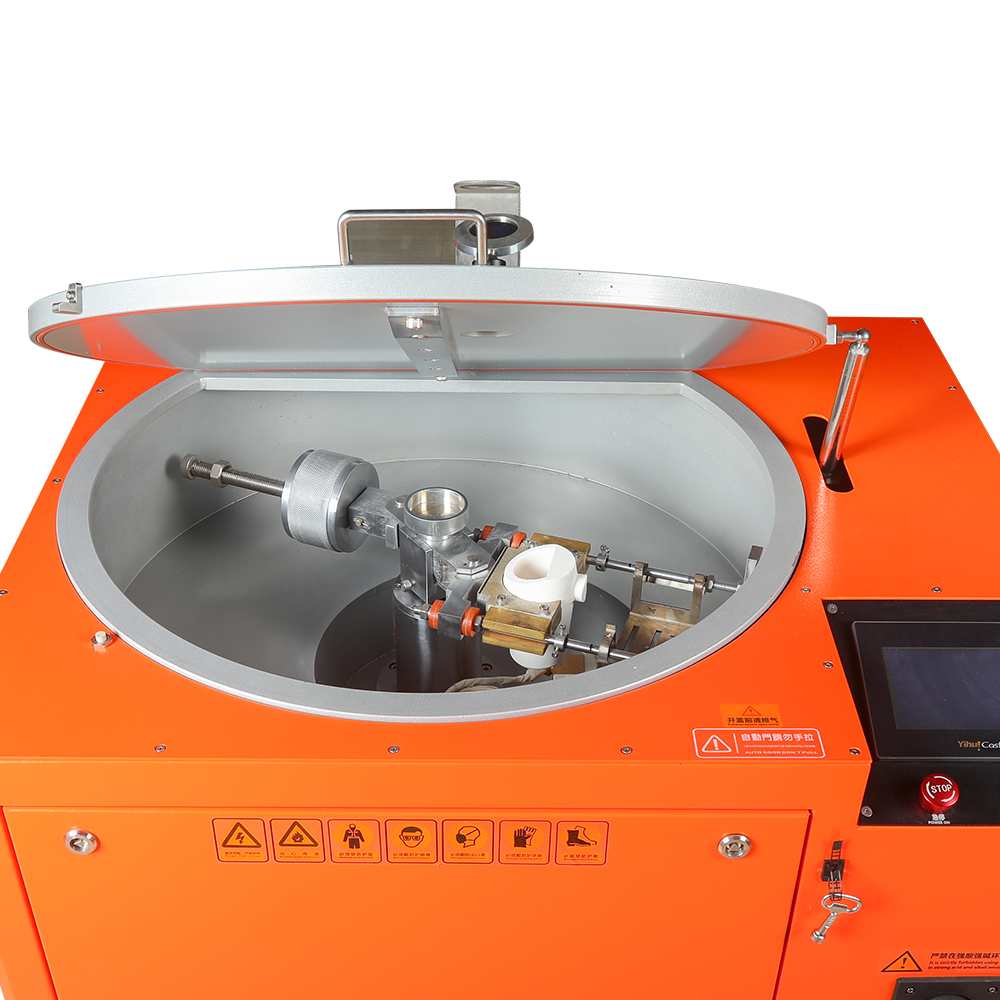

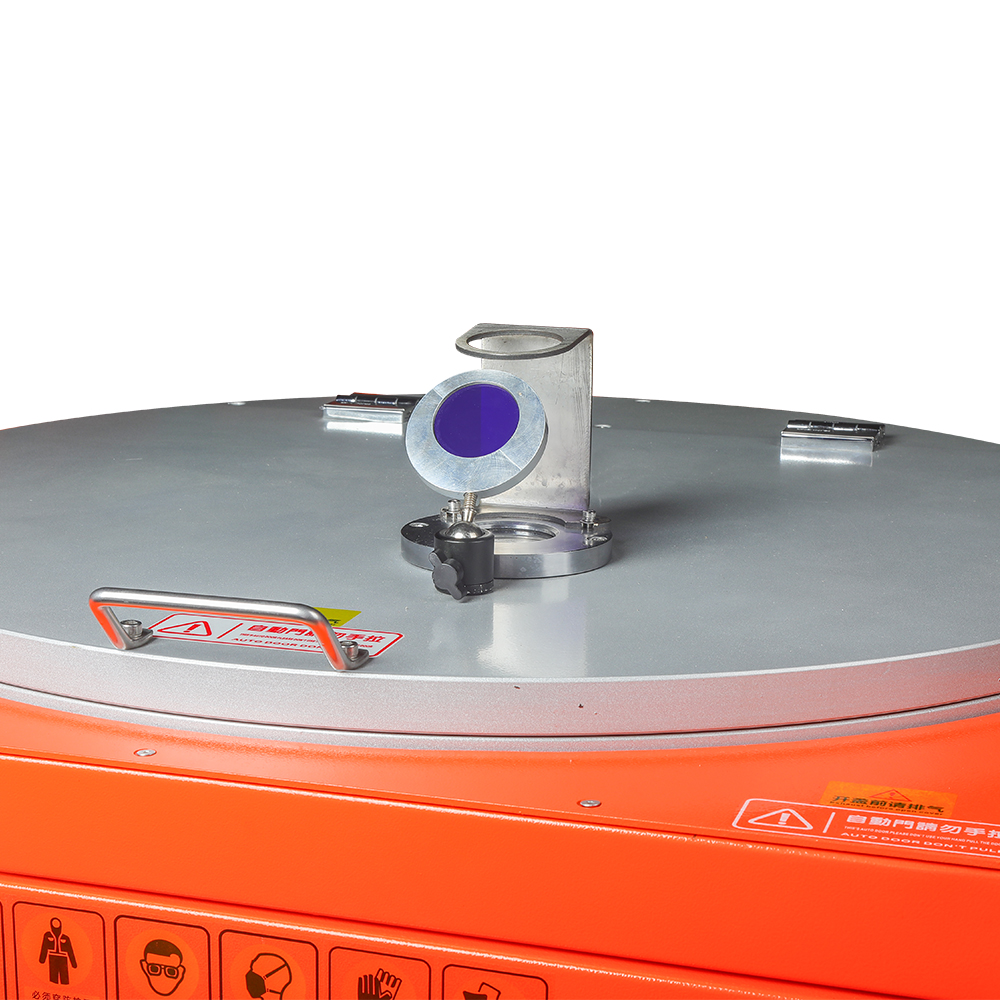

The CC1000 vacuum casting machine can achieve excellent results when casting Pt or small quantities of gold and silver. It uses an infrared detector for temperature and vacuum during the melting process to prevent oxidation. The unique double swing arm structure can increase centrifugal force. A high-performance servo motor is used to improve rotational acceleration and centrifugal force.
| Power supply | 380 V, 3 phase, 50/60 Hz |
| Power | 0-6 kW, adjustable |
| Casting metal weight | 1000 G |
| Metal type | PtT, PD, SS, etc. |
| Packing size | 83 x 108 x 108 cm |
| Packing weight | 450 kg |
1 year warranty
Optional supporting equipment:
PRC-1 Infrared Thermometer
PRC-2 Holder for Infrared Thermometer
C.CC-1000 1000g Ceramic Crucible with Platinum Volume
FL.D-4005 4x5-inch Flask without Flange
RB.A-0040 4-inch Pyramid-shaped Rubber Base
Further information (user manual): CLICK HERE!!!
